Aten CE680 DVI Optical Fiber KVM Extender

Name: Aten CE680 DVI Optical Fiber KVM Extender
Brand: Aten
SKU: CE680
Price: 1285.36 EUR
Availability: InStock

€1,285.36 €1,062.28

Delivery time: 3-5 working days

DVI Optical Fiber KVM Extender (600m)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The CE680 is a DVI Optical KVM Extender that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance. It accepts audio-video stream from a local source and serializes the data to pass over a single 3.125 Gbps optical link (for resolutions up to 1920 x 1200 @ 60Hz, 24-bits).

It can also extend the keyboard/mouse remote control signals, as well as transfer RS-232 signals (up to 115 kbps) in both directions, allowing you to connect serial devices, such as barcode scanners. A USB port on the local and remote unit’s rear panel lets you connect a USB touchscreen panel device, which can access to a computer connected at the local site.

The CE680 allows access to a computer system from both local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of fiber optic cable technology for connecting the local and remote units, providing easy and quick installation and long-range extension of DVI signals.

Voor meer informatie.

Features

• Allows access to a computer or KVM installation from a local / remote console
• Supports DVI-D interface and allows transmission of DVI single-link signals
• Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
• Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Uses one fiber optic cable to connect the local and remote units
• HDCP compatible
• RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
• PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
• Audio Enabled - supports stereo speakers and microphone
• Rack mountable

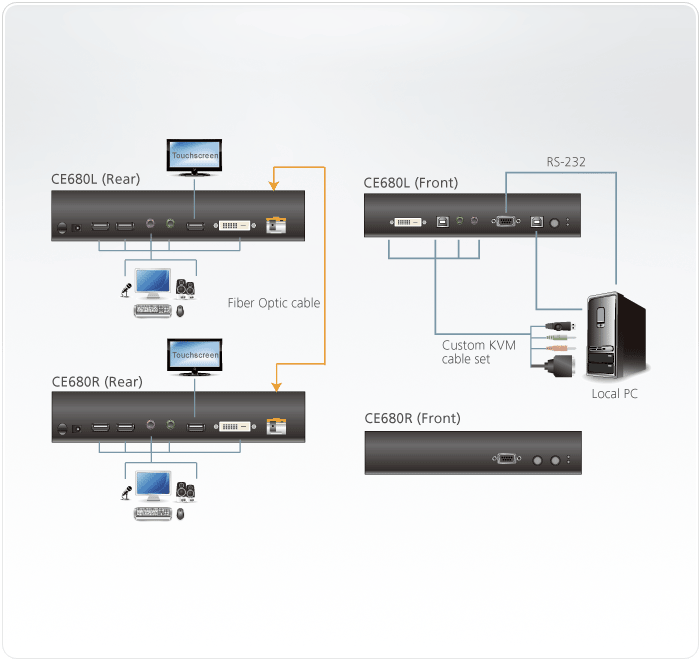

Diagram

Content

• 1 x CE680L DVI Optical KVM Extender (Local Unit)
• 1 x CE680R DVI Optical KVM Extender (Remote Unit)
• 1 x 2L-7D02U Custom KVM Cable Set (1.8m)
• 1 x LIN6-04U1-V1CG USB Cable (1.8m)
• 2 x 0AD6-1605-24EG Power Adapters
• 1 x Mounting Kit
• 1 x User Instructions

Specifications

Function			CE680L	CE680R
Connectors	KVM Ports	Video	1 x DVI-D Female (White)	N/A
		Speaker	1 x Mini Stereo Jack Female (Green)	N/A
		Mic.	1 x Mini Stereo Jack Female (Pink)	N/A
		USB (KB / Mouse)	1 x USB Type B Female (White)	N/A
		USB (Touch Panel)	1 x USB Type B Female (White)	N/A
	Console Ports	Keyboard	1 x USB Type A Female (White)
		Video	1 x DVI-D Female (White)
		Mouse	1 x USB Type A Female (White)
		Speaker	1 x Mini Stereo Jack Female (Green)
		Mic.	1 x Mini Stereo Jack Female (Pink)
		USB (Touch Panel)	1 x USB Type A Female (White)
	RS-232		1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
	Power		1 x DC Jack (Black)
	Optical In/Out		1 x bi-directional SFP (LC)
LEDs	Local		1 (Green)	N/A
	Remote		1 (Green)	1 (Green)
	Link		1 (Green)	1 (Green)
Switches	Operation Mode Selection		1 x Pushbutton
	Wakeup PC		N/A	1 x Pushbutton
Fiber Optics	Operating Distance*		600 m with (SM) fiber
	Wavelength		1310/1550 nm for SM
	Data rate		Single fiber: 3.125G bps
Power Consumption			DC5.3V, 10.2W	DC5.3V, 9.0W
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.10 kg	1.08 kg
	Dimensions (L x W x H)		21.50 x 16.29 x 4.18 cm	21.50 x 16.29 x 4.18 cm

* Note: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fi ber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.

• * The specification and pictures are subject to change without notice.
• * All trademarks and logos are the properties of their respective holders.
