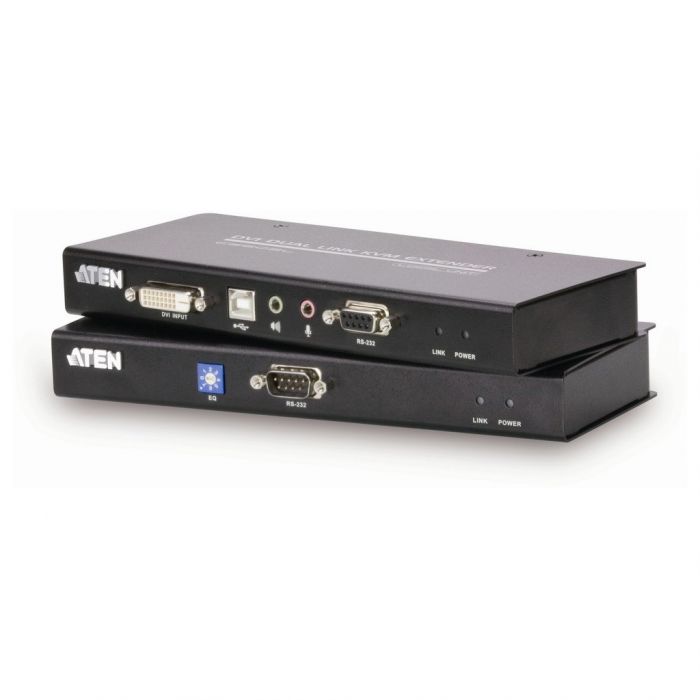

The CE602 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE602 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory ? oor, or the harsh environmental in? uence of a construction site, for example. This allows users to deploy system equipment over large distances.
The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution and requires a second Cat 5e cable to transfer HDCP, RS-232, microphone and dual link signals.
Local and Remote Units connect at distances up to 60 m using Cat 5e cable Allows access to a computer or KVM installation from a remote console (up to 60m) Control your system from the remote console (USB keyboard, USB mouse and DVI interface monitor) Supports DVI-D interface and allows transmission of DVI dual-link signals Features ATEN technology that allows A/V transmission over one cat 5e cable The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals Manual compensation control to adjust signal strength in order to compensate for distance RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps) Audio Enabled – supports stereo speakers and microphone Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) Supports Wide Screen formats Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions Hot pluggable Rack mountable Easy to install – no software required – connecting cables to the devices is all it takes Firmware upgrade
Diagram
Content
• 1x CE602L DVI KVM Extender (Local Unit)
• 1x CE602R DVI KVM Extender (Remote Unit)
• 1x 2L-7D02UD 1.8 m USB DVI-D Dual Link KVM Cable Set
• 2x 0AD6-1605-24EG Power Adapters
• 1x Mounting Kit
• 1x User Instructions
